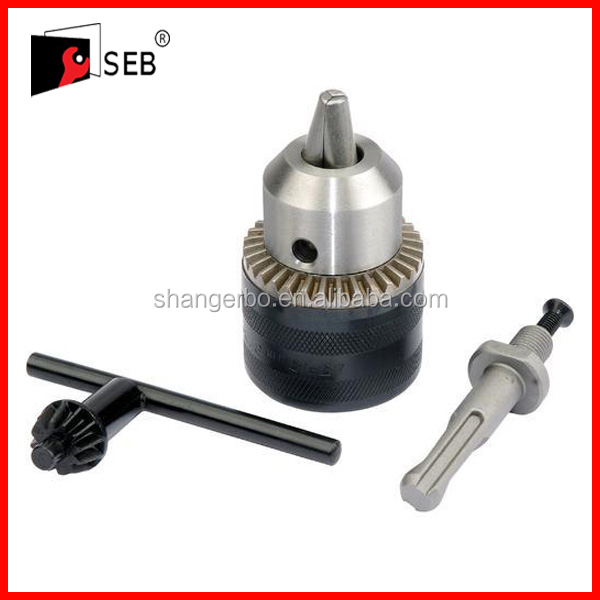

Taper Mounted Platinum Grade Keyless or Key Type Drill Chuck

FOB Reference Price:Get Latest Price
$0.34 - $4.56 / Piece | 1 Piece/Pieces (Min. Order)
Type:
Keyless Drill Chucks
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
SEB
Model Number:
SEB-DR 042
Power:
Electric
Number of Jaws:
3
Material:
High Quality Carbon Steel
Hardness:
HRC56-58
MOQ:
1pcs
Advantage:
High Quality
Keywords:
drill chuck
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Color box & Blister card
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 15 To be negotiated

Drill Chuck PRODUCTS LIST

Key Type Chuck

Keyless Chuck

Self-tighten Chuck System

Type: Light Duty/ Mid-heavity Duty/ Heavy Duty



Thread

 10mm 3/8"-24UNF



13mm 1/2"-20UNF



16mm 5/8"-16UNF





1.The nut and jaws adopt special steel ,durability and super precision



2.Suitable for super electic grinder, engravine machine and precision machine lathe



3.To be used for milling & drilling machine ,bench and wood working machine.



Scope of light, medium, heavy-based drilling connecting portable bench drill or power tool.



Features:



1. High-precision thread and tapered bore closely connected to the tool.



2. Shell, keyhole, keys after quenching.



3. Gripper special treatment, with good wear resistance.



4. Gears and gear housing Pressing the key.



5. Accuracy accurate and reliable, durable.





Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.



Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.



Our Services and reputation:

Great quality, excellent price and customers satisfication





Type Clamping range Thread D (mm) L (mm)
mm inch
J316  0.6-6  1/64-1/4  3/8-24UNF  30 49
J3510  1.5-10  1/16-3/8  3/8-24UNF  33.3 57
J3510A  1.5-10  1/16-3/8  M12 × 1.25  33.3 57
J3510B  1.5-10  1/16-3/8  1/2-20UNF  33.3 57
J3510C  1.5-10  1/16-3/8  M10 × 1.0  33.3 57
J3513  1.5-13  1/16-1/2  1/2-20UNF  42.5 72.5
J3513A  1.5-13  1/16-1/2  3/8-24UNF  42.5 72.5
J3513B  1.5-13  1/16-1/2  M12 × 1.25  42.5 72.5
J3513C  1.5-13  1/16-1/2  M12 × 1.0  42.5 72.5
J3513D  1.5-13  1/16-1/2  M14 × 1.0  42.5 72.5
J3516  3.0-16 1/8-5/8  M12 × 1.25  53 86
J3516  3.0-16 1/8-5/8  1/2-20UNF  53 86
J3516  3.0-16 1/8-5/8  3/8-24UNF  53 86
J3516  3.0-16 1/8-5/8  5/8-16UN  53 86
