Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: SEB
  • Model Number: SEB-DW2026
  • Shape: Cup-Shaped
  • Abrasive: Diamond
  • Bonding Agent: Metal
  • Hardness: Rough, Medium, Smooth
  • Viscosity: customized
  • Size: 3",4",4.5"5",6" or customized
  • Application of Diamond grinding wheel: GRIND ALL TYPES OF CONCRETE, MASNATURAL ONRY, BRICK AND STONES
  • Type of Diamond grinding wheel: diamond grinding cup wheel
  • Package of Diamond grinding wheel: Color box,blister card or customized
  • Segment of Diamond grinding wheel: double row
  • Advantage of Diamond grinding wheel: competitive price and long lifetime
  • machine of Diamond grinding wheel: angle grinder
  • Terms of Diamond grinding wheel: FOB,CIF,CNF
  • Market of Diamond grinding wheel: North America, South America, Europe, Africa,Middle East,Asia

Packaging & Delivery

Packaging Details white box,color box,doulbe blister or according to customer's requirement
Delivery Time Depends on the quantity

Turbo Cup Diamond grinding wheel

Discription of Cup Diamond grinding wheel  :

For aggressive material removal Large grinding segments with heat treated steel bodies help increase durability and wheel life

This grinding cup wheel diamond coating is great for any kind of masonry grinding, marble, tile, concrete and rock.

Diamond Cup wheel design is great for heavy-duty masonry materials removal.

Cup Wheels are designed to be used on small and large angle grinders. They are designed with an optimized cutting matrix.

The high diamond concentration and quality provides a faster cut rate, longer blade life and high performance.



Specification of Diamond grinding wheel :

Application

Diameter

Segment Height (mm)

Segment

Thickness(mm)

Segment No.

Arbor

(mm)

Single row diamond grinding wheel

105mm(4”)

5

7

8

M14,5/8”-11,22.23

115mm(4.5”)

5

7

9

M14,5/8”-11,22.23

125mm(5”)

5

7

10

M14,5/8”-11,22.23

150mm(6”)

5

7

12

M14,5/8”-11,22.23

180mm(7”)

5

7

14

M14,5/8”-11,22.23



Application

Diameter

Segment Height (mm)

Segment

Thickness(mm)

Segment No.

Arbor

(mm)

Double row diamond grinding wheel

105mm(4”)

5

7

16

M14,5/8”-11,22.23

115mm(4.5”)

5

7

18

M14,5/8”-11,22.23

125mm(5”)

5

7

20

M14,5/8”-11,22.23

150mm(6”)

5

7

24

M14,5/8”-11,22.23

180mm(7”)

5

7

28

M14,5/8”-11,22.23



Application

Diameter

Segment Height (mm)

Segment

Width(mm)

Segment No.

Arbor

(mm)

Turbo diamond grinding wheel

105mm(4”)

5

20

Turbo

M14,5/8”-11,22.23

125mm(5”)

5

20

Turbo

M14,5/8”-11,22.23




Different types of diamond grinding wheel:
1.  Single Row diamond grinding wheel:

For general grinding applications in both concrete and masonry. Available threaded or non threaded in White or Red grades.

SINGLE ROW FOR FASTER/MORE AGRESSIVE GRINDING OF CONCRETE & MASONRY APPLICATIONS.

2. Double Row diamond grinding wheel:
Designed for heavy duty material removal and steep slope grinding of concrete and masonry. Available threaded or non threaded in White and Red grades.
3. Turbo diamond grinding wheel:
The sintered turbo cups are engineered to grind granite, hard stone & refractory. Available in Coarse, Medium and Fine grit, threaded or non threaded.
4. Turbo Wide Spaced cup wheel:
The turbo wide spaced cups are designed for fast grinding speed in both concrete or masonry.  Available threaded or non threaded.

5. Turbo Fan cup wheel:
The turbo fan design allows for quick grinding in concrete and granite. Available in both threaded and non threaded cups.
6.  PCD diamond grinding wheels:
Polycrystalline Diamond grinding cup wheels are widely used in many grinding applications such as removal of epoxy, glue, resin and paint, from concrete coated floors.
7. T segment Diamond grinding wheel:
The engineered “T” shaped segment allows for smooth grinding performance in many applications such as cured concrete, brick, block and a number of other hard materials.

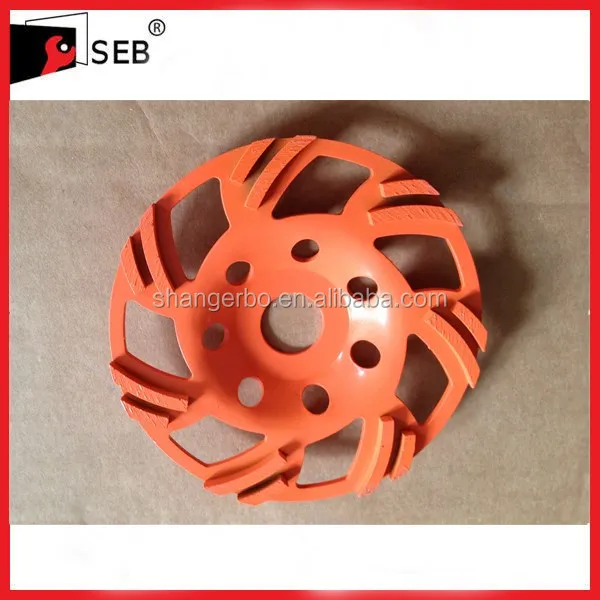

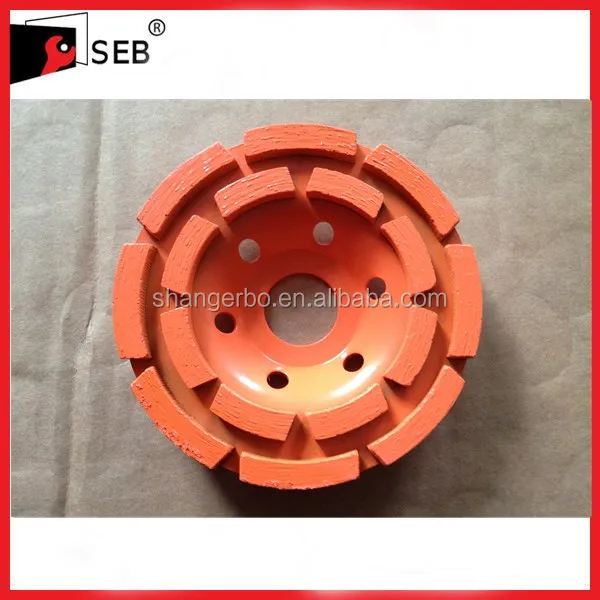

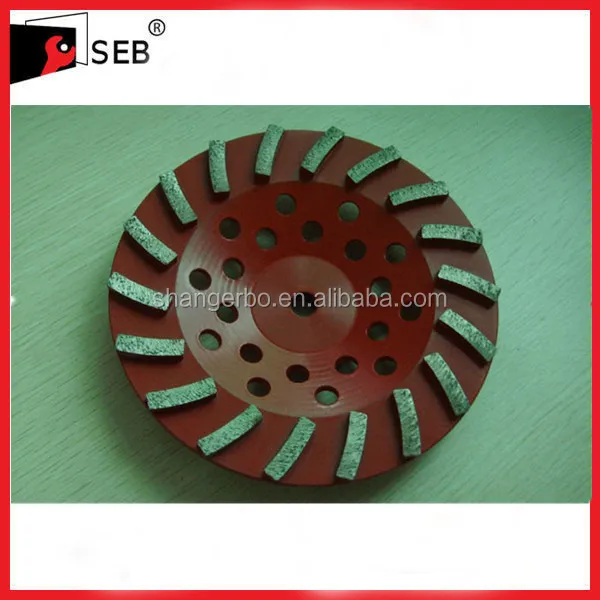

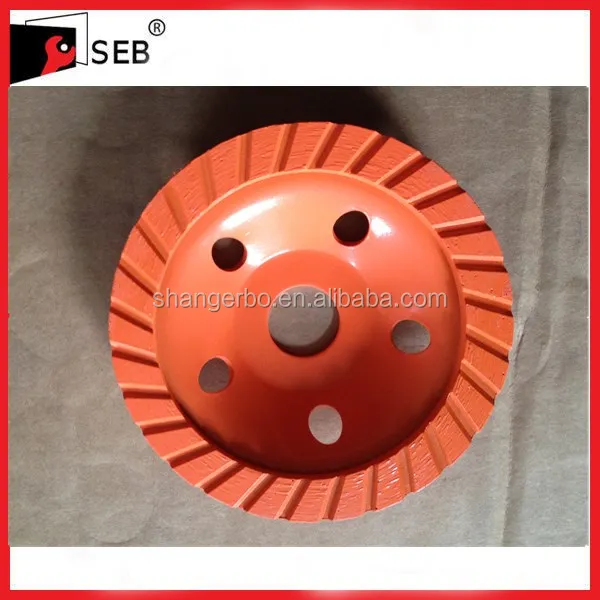

Pictures of diamond grinding cup wheels:
